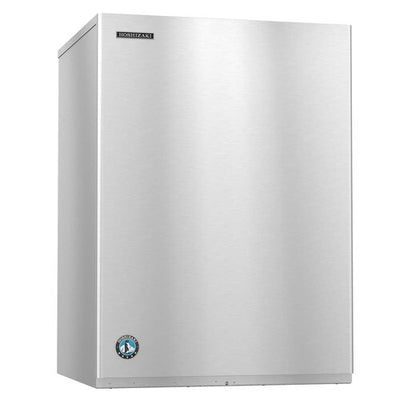

Hoshizaki KM-1601MRJ 30" Crescent Cube, Modular Ice Machine Head, Remote Cooled, 1,594 lb/24 h, 208-230v/1ph

  • Ice Machine
  • 30"W
  • Air-cooled
  • Remote condenser (priced separately)
  • Production capacity up to 1,594 lb/24 hours at 70°/50° (1,550 lb AHRI certified at 90°/70°)
  • Stainless steel finish
  • Crescent cube style
  • R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL

Remote condenser, ice storage, bin or dispenser is sold separately!

$10,250.90 USD

Buy Now


The Hoshizaki KM-1601MRJ ice machine head makes as much as 1,594 pounds of ice daily, and CycleSaver™ technology limits the number of cycles it takes to reach a maximum capacity. Since it makes crescent cube ice, the unit can be used for soft drinks, mixed drinks, dispensing, and bagged operations. H-Guard Plus antimicrobial technology is built into the machine, reducing the risk of bacteria growth. If there is a system issue, the EverCheck™ alarm system beeps to alert the operator. The Hoshizaki KM-1601MRJ ice machine head has a stainless steel evaporate and exterior, which resists corrosion and scratches.

Product Details:

  • 1,594-lb. maximum daily ice production
  • 1,550-lb. AHRI-certified daily ice production

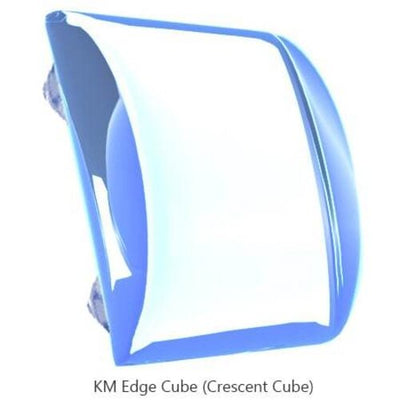

  • Produces crescent cubes
  • CycleSaver technology maximizes production in few cycles
  • Made with H-Guard Plus antimicrobial agent to slow down bacteria
  • EverCheck alert system keeps the operator up to date with system issues
  • Durable, rust-resistant, stainless steel evaporator and exterior
  • R404A refrigerant
  • Ambient air temperature should be between 45-100 degrees F
  • Incoming water temperature should be between 45-90 degrees F
  • URC-22F remote condenser is sold separately
  • Ice bin is sold separately
  • 15.9 A, 4.35 kw
  • 208-230 V/60 Hz/1 ph
  • Ice dimensions: 1.5 in. x 1.125 in. x 0.5 in. H
  • Overall dimensions: 30.24 in. W x 27.56 in. D x 41.7 in. H
  • UL listed; AHRI and NSF certified

Remote condenser, ice storage, bin or dispenser is sold separately!


Width30 Inches

Depth27 3/8 Inches

Height41 5/8 Inches

Phase1 Phase

Voltage208-230 Volts

24 Hour Ice Yield 1,594 Pounds

Condenser Type Remote

Energy Star Qualified Yes

Ice Type Crescent Cubes

NSF Listed Yes

Installation Type Modular

Type Ice Machines
