Hoshizaki KM-1601SRJ3 48" Crescent Cube, Stackable Ice Machine Head, Remote Cooled, 1,635 lb/24 h, 208/230v/3ph

  • Ice Machine
  • 48"W
  • Air-cooled
  • Remote condenser (priced separately)
  • Production capacity up to 1,635 lb/24 hours at 70°/50° (1,600 lb AHRI certified at 90°/70°)
  • Crescent cube style,
  • Stainless steel exterior
  • R-404A refrigerant
  • 208-230v/60/3-ph, 12.8 amps
 Remote condenser, ice storage, bin or dispenser is sold separately!

$10,253.10 USD

Buy Now


This Hoshizaki KM-1601SRJ3 remote cooled ice machine can produce up to 1635 lb. of crescent cube ice per day, and with its stackable design you can put a second unit on top for even greater ice production in the same floor space! Its stainless steel exterior and evaporator are designed for years of dependable service, and the unit utilizes "H-Guard Plus" antimicrobial protection for increased sanitation. The KM-1601SRJ3 requires a 208-230V 3 phase electrical connection. See compatiblity chart for compatible remote condenser (sold separately).

  • Stackable design allows increased ice production

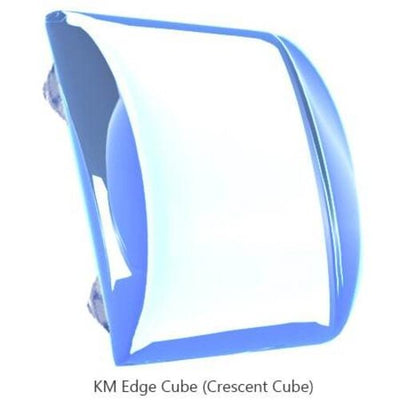

  • Produces "crescent cube" (1 1/8" x 1 1/2" x 1/2") half-cylinder ice
  • EverCheck alert system, CycleSaver design for ease of use and efficiency
  • Stainless steel exterior and evaporator
  • R-404A refrigerant
  • 208-230V 3 phase

Overall Dimensions:

  • Left to Right: 48"
  • Front to Back: 27 3/8"
  • Height: 27 3/8"


Width48 Inches

Depth27 3/8 Inches

Height27 3/8 Inches

Amps12.8 Amps

Hertz 60 Hertz

Phase3 Phase

Voltage208-230 Volts

24 Hour Ice Yield 1,635 Pounds

Condenser Type Remote

Energy Star Qualified Yes

Ice Type Crescent Cubes

NSF Listed Yes

Power Usage 4.14 kWh per 100 lbs.

Type Ice Machines

Water Usage 18 Gallons per 100 lbs.
