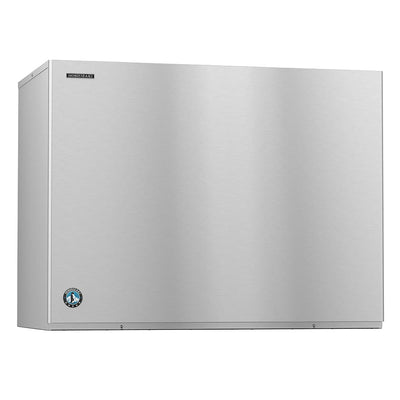

Hoshizaki KM-2200SRJ3 48" Crescent Cube, Stackable Ice Machine Head, Remote Cooled, 2,206 lb/24 h, 208/230v/3ph

  • Ice Machine
  • 48"W
  • Remote air-cooled, remote condenser (priced separately)
  • Production capacity up to 2,206 lb/24 hours at 70°/50° (2,075 lb AHRI certified at 90°/70°)
  • Stainless steel finish
  • Crescent cube style
  • R-404A refrigerant, 208-230v/60/3-ph, 15.9 amps, NSF, UL, ENERGY STAR®
Remote condenser, ice storage, bin or dispenser is sold separately!

$12,451.00 USD

Buy Now


Using CycleSaver™ technology, the Hoshizaki KM-2200SRJ3 ice machine head produces a large amount of ice in few cycles. In 24 hours, it makes as much as 2,206 pounds of ice with 43-pound production cycles. This unit makes crescent cube ice, ideal for sodas and mixed drinks. A series of beeps with the EverCheck™ alarm system alerts the operator of system issues, while H-Guard Plus antimicrobial agent slows bacteria and microbe growth. Since the evaporator and exterior on this Hoshizaki KM-2200SRJ3 ice machine head are made of stainless steel, they resist corrosion and dents.

Product Details:

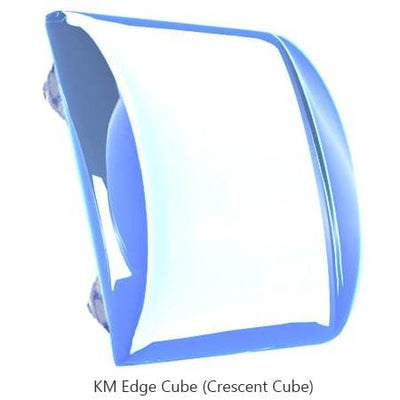

  • Makes crescent cube ice
  • 2,206-lb. maximum daily ice production
  • 2,075-lb. AHRI-certified daily ice production
  • 43-lb. production per cycle with 2,160 individual cubes
  • CycleSaver technology reduces the amount of cycles it takes to produce a maximum amount of ice
  • EverCheck alert system uses a series of beeps to identify system issues
  • H-Guard Plus antimicrobial agent slows growth of bacteria
  • Stainless steel exterior and evaporator resist rusting and add strength
  • Uses R404A refrigerant
  • Ambient air temperature should be between 45-100 degrees F
  • Incoming water temperature should be between 45-90 degrees F
  • URC-22F remote condenser is sold separately
  • Ice bin is sold separately
  • 15.9 A, 3.75 kW
  • 208-230 V/60 Hz/3 ph
  • Ice dimensions: 1.125 in. x 0.5 in. x 1.5 in.
  • Overall dimensions: 48.25 in. W x 27.5625 in. D x 36.5625 in. H
  • UL listed; AHRI, NSF, and ENERGY STAR certified

Remote condenser, ice storage, bin or dispenser is sold separately!


Width48 Inches

Depth27 3/8 Inches

Height36 7/16 Inches

Phase3 Phase

Voltage208-230 Volts

24 Hour Ice Yield 2,206 Pounds

Condenser Type Remote

Energy Star Qualified Yes

Installation Type Stackable

NSF Listed Yes

Type Ice Machines
